High speed basic shell aluminum caps making
| Payment Type: | L/C,T/T |
|---|---|
| Terms of Trade: | FOB,CFR,CIF,EXW |
| Delivery Time: | 90 Days |
| Packaging: | seaworthy packing |
|---|---|
| Transportation: | Ocean |
| Port: | Ningbo,Shanghai |
Basic Info
Model No.: GT2A4-120
Product Description
Product Application

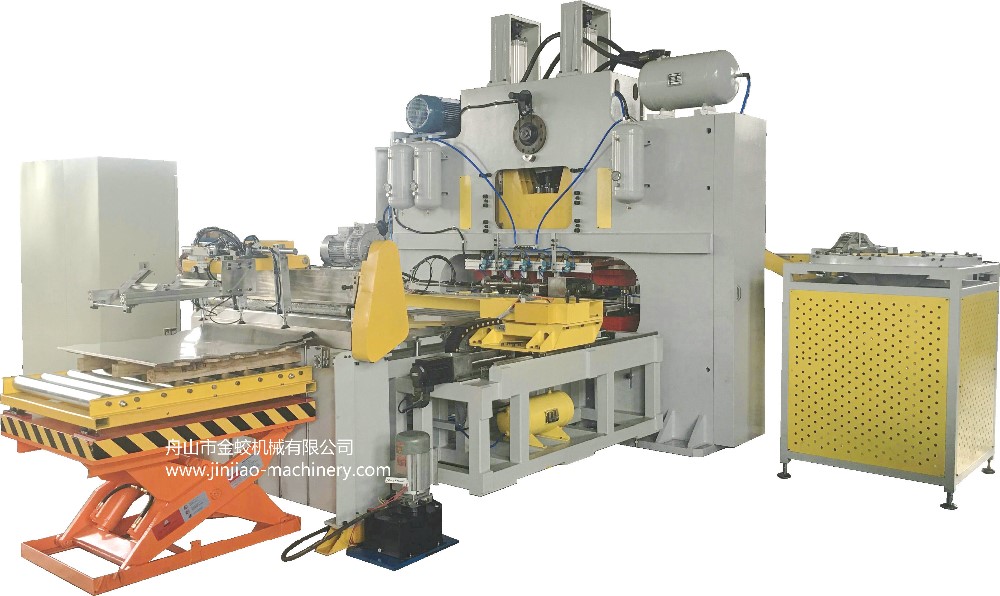

This machine is a high speed and high precision automatic cover production equipment. It is suitable for the cover made by the tinplate (aluminum), basic shell of easy open end, aerosol caps and the screw caps.The whole sheet (aluminum) from the cylinder feedstock, servo feeding, automatic position pushing, mechanical hand stuffing , servo feeding, cap blanking, automatic out of the cover to curling with fully automatic operation, no manual operation.
According to the customer's demand for production capacity, we have developed 40T, 60T, 120T three kinds of pressure presses, which can be installed with 1-7 dies respectively.According to the electrical configuration of the mechanical hand feeding, it is divided into three configurations, namely, the many-times empty stroke,2 -empty stroke and no one.
The whole production line should be equipped with automatic CNC punching press, high speed curling machine, high-speed lining machine, on-line detection machine, electromagnetic drying and counting packing machine.
| SPECIFICATIONS FOR BOTTOM COVER (BASIC SHELL) MAKING PRODUCTION LINE | |||
| Parameters Mode | GT2A4-120 | GT2A4-120-H | GT2A4-60 |
| Normal Pressure | 120T | 120T | 60T |
| Max stroke times | 200 | 240 | 200 |
| Max die installed | 7 | 7 | 3 |
| Max sheet size | 1100*1100 | 1100*1100 | 1100*1100 |
| Max sheet thickness | 0.4mm | 0.4mm | 0.4mm |
| Total Power | 25kw | 25kw | 20kw |
| Installation size | 3400*1500*2800 | 3400*1500*2800 | 2700*1300*2700 |
| Total weight | 14T | 14T | 10.8T |
Main Features
1. Man-machine interface and simple operation.
2. Using the mechanical arm servo feeding, the automation degree is high.
3. Equipped with various alarm protection, safe and convenient to maintain.
4. Adopt the gantry bed, no gap guide running, when with high speed operation it has good stability and high precision.
5. Use the whole sheet blanking to improve efficiency and reduce the loss of raw materials.
Zhoushan Jiaolong Import And Export Co., Ltd.
Zhoushan JiaoLong Machinery is located in the beautiful island city - Zhoushan islands.The company was founded in 2006, is a professional manufacturer of tin cans making machinery, lid machinery and all kinds of mold.Company recruit more capable talents and appreciate research and development, through the absorption, the recommend and digestion advanced technology and design concept overseas and domestic, in conformity with the guiding principle of "dare innovation, keep improving", make the products constantly updated and the quality improved based on market demand,has won worldwide customers consistent recognition and praise. Our company has become a bright jewel in the packaging industry of tinplate, through our dedication with "Decade of grinding sword" and professional ethics.
Our company provides the following series of products:lids production line (EOE and basic shell),aerosol cone and dome production line,two-piece can making machine and screw-cap production line.Including: high precision CNC press, high speed lining machine, testing machine on line, electromagnetism oven, conversion press for producing aerosol cone etc. We can also offer trimming die,shear die, cutter, mold core , seaming roller chuck and related accessories and mold.
Now our machines have been exported to Russia, Ukraine, Turkey, Bulgaria, Poland, Australia, Singapore, Thailand, the Philippines, India, the united Arab emirates, Iran, Egypt, Nigeria and other countries ,it is always ready to develop long and good relationship with overseas companies.
